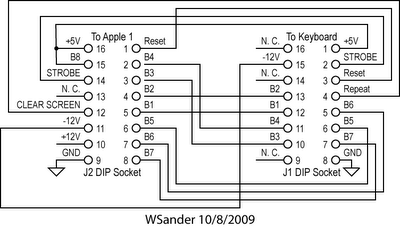

Apple II Keyboard to Apple 1 mapping/schematics








All of the preceeding images were sent to me by W.Sander

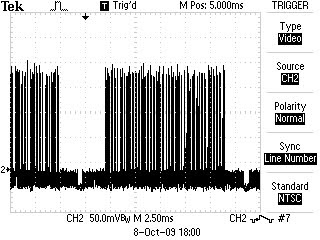

I will be using Sander's design for my keyboard rig. He was kind enough to go out of his way to obtain the video signal images and a nice image of the Apple 1 screen when the system is first booted.
Note that the ampersand symbols flash, but the dashes do not flash. Check out the cool case for the Apple 1, also designed by Sander.
